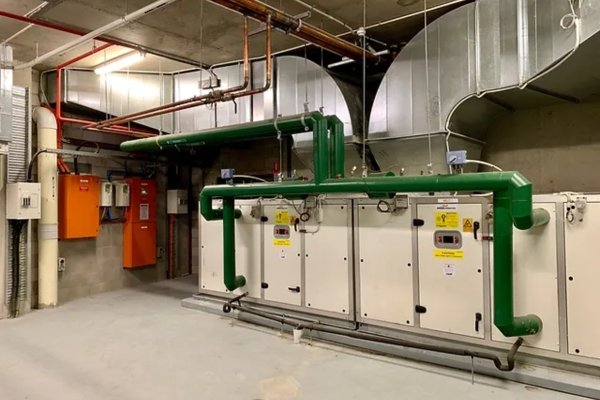

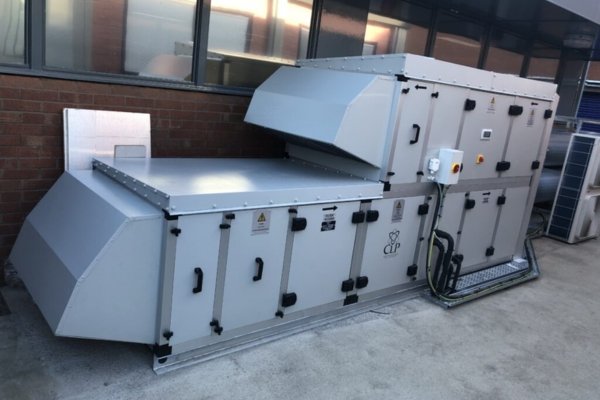

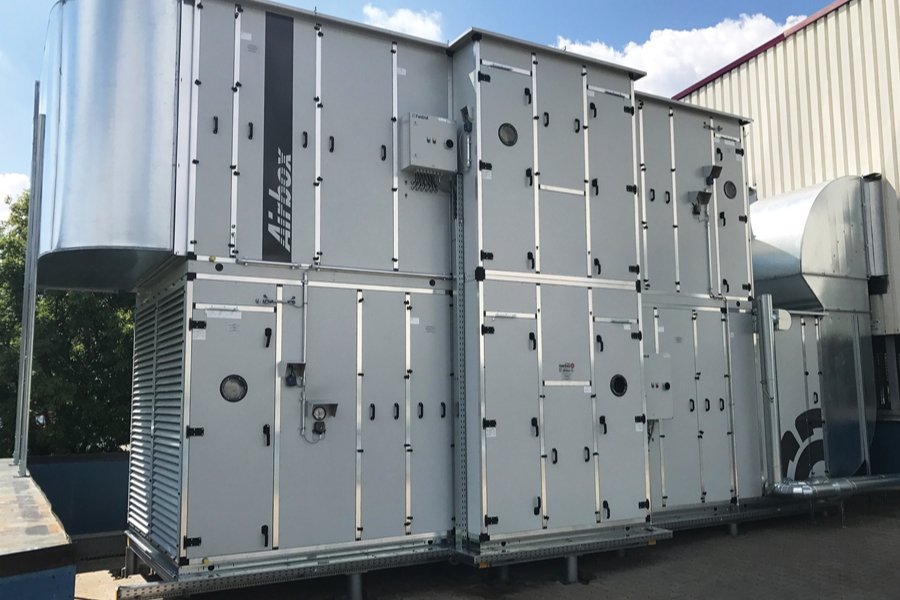

Air Handling Unit

    CAPACITY RANGE:

  • 1000 CFM (2.5 TR) upto 80000 CFM (100 TR)

    • TYPE:

  • Ceiling Suspended Type (Air Handling Unit)
  • Vertical Type (Air Handling Unit)
  • Horizontal Type (Air Handling Unit)
  • TFA (Special Air Treatment Unit)

    • APPLICATIONS:

  • Hotel, Hospital, Offices, Class Rooms, Malls, Pharmaceutical industry.

    • FEATURES:

  • Casing made out of pre coated/Galvanised/Powder coated Sheets (Gl).
  • Usage of Heavy duty Extruded Aluminium profile construction
  • Sturdy access doors with extra strong locks, handles and knobs for leak proof fittings
  • 25/50 mm thick External and Internal flush panels
  • Panels are filled with thick pressure injected polyurethane foam, having 40 kg / cum density
  • High efficiency, AMCA Certified, Imported Blowers are used
  • forward curved blowers for normal applications.
  • back ward curved for high resistance applications.
  • Thermal break construction.

    • OPTIONS:

  • Thermal break with covered profile
  • Heating coil
  • Face and pass damper
  • Humidifier
  • Air mixing chamber
  • S.S. drain tray


Ceiling Suspended Type (Air Handling Unit)

    CAPACITY RANGE:

  • 800 CFM upto 10000 CFM

    • TYPES:

  • Belt type
  • Direct driven

    • APPLICATIONS:

  • Comfort Air-conditioning — For Shopping Malls, Multiplexes, and Small offices.

    • FEATURES:

  • Compact, low height, with single /Twin centrifugal fan.

    • OPTIONS:

  • Direct driven/ Belt driven options.
  • Units available in Double / Single skin.
  • Direct Driven units with single-phase motors.

Vertical Type (Air Handling Unit)

    CAPACITY RANGE:

  • 800 CFM upto 12000 CFM

    • APPLICATIONS:

  • Comfort Air-conditioning = For Shopping Malls, Multiplexes, and Small offices, Hotels.

    • FEATURES:

  • Customized Units available up to 18000 cfm.

    • OPTIONS:

  • Belt driven units available in Double / Single skin.
  • Compact, Space saving with single /multi centrifugal fan.

Horizontal Type (Air Handling Unit)

    CAPACITY RANGE:

  • F1000 CFM to 80000 CFM

    • APPLICATIONS:

  • Comfort Air Conditioning = For Schools, Studio, Airports, Laboratories, Multiplexes, Offices, Institutional Buildings, and Hotels.

    • FEATURES:

  • The Unit is manufactured as per the customer's requirements.

    • OPTIONS:

  • Single/Double Tier Construction.
  • Thermal break profile with 25/43mm panel thickness.
  • Filter sections for EU-5, EU-7, in Rigid /Bag construction.
  • Heat recovery Wheel/Heat Pipe.
  • Humidification, Pre/ Re Heat Package.
  • Mixing Box with Fresh/Return Air Dampers
